| SPECIFICATION |
| MODEL/구분 |
YSEC- |
YSEC- |
YSEC- |
YSEC- |
YSEC- |
YSEC- |
YSEC- |
YSEC- |
| 020U |
030U |
050U |
060U |
075U |
100U |
150U |
200U |
| 전원 |
3PH, 50/60Hz, 220/380/440V |
| 사용냉매 |
R-22 |
| 냉방능력(Kcal/h) |
5,400 |
8,100 |
13,500 |
16,200 |
20,250 |
27,000 |
40,500 |
54,000 |
| 난방능력(Kcal/h) |
5,160 |
6,880 |
8,600 |
10,320 |
12,040 |
17,640 |
20,640 |
24,080 |
| 압축기(호칭출력KW) |
1.5 |
2.24 |
3.73 |
2.24 * |
5.6 |
3.73 * |
5.6 * |
7.5 * |
| 2EA |
2EA |
2EA |
2EA |
| BLOWER |
출력(Kw * P * EA) |
0.2Kw * 6P |
0.45Kw * 6P |
0.5Kw * 8P |
0.45Kw * 6P * 2EA |
0.45Kw * 6P * 2EA |
0.5Kw * 8P * 2EA |
0.55Kw * 8P * 2EA |
0.55Kw * 8P * 2EA |
| 기내정압(mm/Aq) |
15~20 |
| 풍량(CMM) |
25 |
35 |
60 |
80 |
80 |
110 |
160 |
220 |
| 히터 |
형식 |
Aero fimmes tube |
| 용량(Kw * STEP) |
6Kw |
8Kw |
10Kw |
12Kw |
14Kw |
16Kw |
24Kw |
28Kw |
| FILTER |
PRE FILTER (부직포) |
| 가습기 |
형식 |
Pan Type / 전자전극봉식 |
| 가습량(kg/h) |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
| 내장부품 |
MICOM CONTROLLER, 전자변, 팽창변, |
| SIGHT GLASS, FILTER DRIER, EHC, 가습기, BLOWER |
| PIPING SIZE |
REF. |
GASS |
19.05 |
19.05 |
22.22 |
19.05 * 2EA |
22.22 |
22.22 * 2EA |
22.22 * 2EA |
28.58 * 2EA |
| LIQUID |
9.52 |
9.52 |
12.7 |
9.525 * 2EA |
15.88 |
12.7 * 2EA |
15.88 * 2EA |
15.88 * 2EA |
| DRAIN |
25A |
25A |
25A |
25A |
25A |
32A |
32A |
32A |
| HUMIDIFIER WATER PIPING |
9.52 |
9.52 |
9.52 |
9.52 |
9.52 |
9.52 |
9.52 |
9.52 |

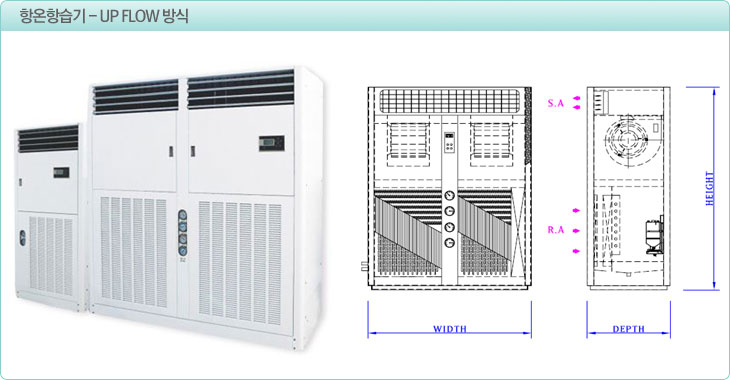

| UNIT SIZE |
QIDED |
mm |
770 |
770 |
850 |
1,150 |
1,150 |
1,400 |
1,800 |
1,800 |
| DEPED |
mm |
610 |
610 |
650 |
650 |
650 |
700 |
800 |
800 |
| HEIGHT |
mm |
1,830 |
1,380 |
1,830 |
1,830 |
1,830 |
1,830 |
1,900 |
1,900 |
|
 |
| SPECIFICATION |
| MODEL/구분 |
YSEC- |
YSEC- |
YSEC- |
YSEC- |
YSEC- |
YSEC- |
YSEC- |
YSEC- |
| 020U |
030U |
050U |
060U |
075U |
100U |
150U |
200U |
| 전원 |
3PH, 50/60Hz, 220/380/440V |
| 사용냉매 |
R-22 |
| 냉방능력(Kcal/h) |
5,400 |
8,100 |
13,500 |
16,200 |
20,250 |
27,000 |
40,500 |
54,000 |
| 난방능력(Kcal/h) |
5,160 |
6,880 |
8,600 |
10,320 |
12,040 |
17,640 |
20,640 |
24,080 |
| 압축기(호칭출력KW) |
1.5 |
2.24 |
3.73 |
2.24 * |
5.6 |
3.73 * |
5.6 * |
7.5 * |
| 2EA |
2EA |
2EA |
2EA |
| BLOWER |
출력(Kw * P * EA) |
0.2Kw * 6P |
0.45Kw * 6P |
0.5Kw * 8P |
0.75Kw * 6P |
0.75Kw * 6P |
0.5Kw * 6P * 2EA |
0.75Kw * 6P * 2EA |
2.2Kw * 6P * 2EA |
| 기내정압(mm/Aq) |
15~20 |
| 풍량(CMM) |
35 |
35 |
60 |
70 |
80 |
120 |
160 |
220 |
| 히터 |
형식 |
Aero fimmes tube |
| 용량(Kw * STEP) |
6Kw(3*2) |
8Kw(4*2) |
10Kw(2.5*2) |
12Kw(3*4) |
14Kw(3.5*2) |
16Kw(4*4) |
24Kw(6*4) |
28Kw(7*4) |
| FILTER |
PRE FILTER (부직포) |
| 가습기 |
형식 |
Pan Type / 전자전극봉식 |
| 가습량(kg/h) |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
| 내장부품 |
MICOM CONTROLLER, 전자변, 팽창변, |
| SIGHT GLASS, FILTER DRIER, EHC, 가습기, BLOWER |
| PIPING SIZE |
REF. |
GASS |
19.05 |
19.05 |
22.22 |
19.05 * 2EA |
22.22 |
22.22 * 2EA |
22.22 * 2EA |
28.58 * 2EA |
| LIQUID |
9.52 |
9.52 |
12.7 |
9.525 * 2EA |
15.88 |
12.7 * 2EA |
15.88 * 2EA |
15.88 * 2EA |
| DRAIN |
25A |
25A |
25A |
25A |
25A |
32A |
32A |
32A |
| HUMIDIFIER WATER PIPING |
9.52 |
9.52 |
9.52 |
9.52 |
9.52 |
9.52 |
9.52 |
9.52 |
| UNIT SIZE |
QIDED |
mm |
800 |
800 |
870 |
1,150 |
1,250 |
1,450 |
1,900 |
1,900 |
| DEPED |
mm |
650 |
650 |
650 |
700 |
700 |
700 |
800 |
800 |
| HEIGHT |
mm |
1,750 |
1,750 |
1,780 |
1,800 |
1,800 |
1,800 |
1,850 |
1,850 |
|
|
|
